Vision Scientific VS-11F Trinocular Zoom Multi-Directional Microscope | 10x Widefield Eyepiece | 0.7X—4.5X Zoom Range, 7X—45x Magnification Range | Micro-Inserts Stand with Spring Bracket

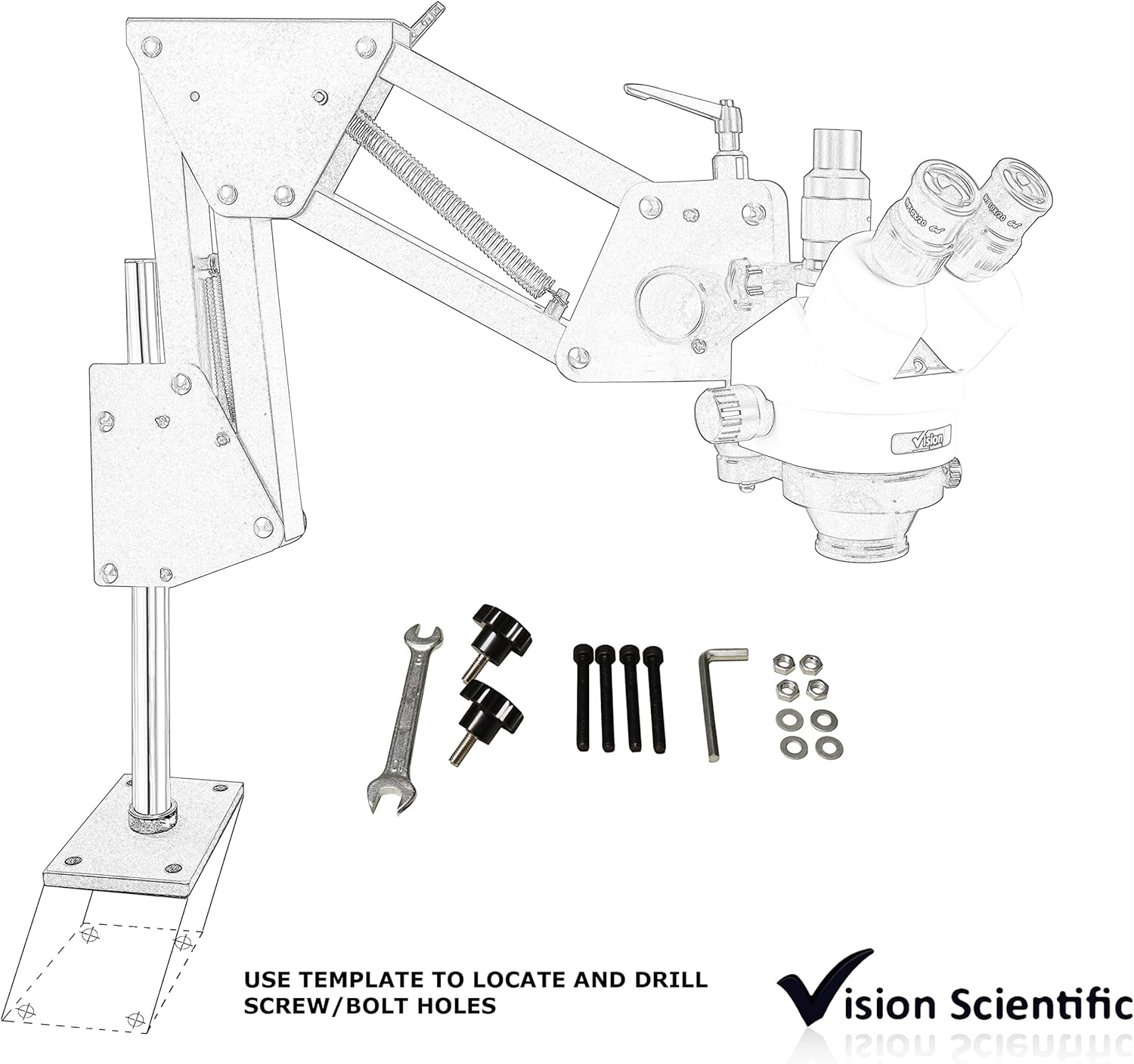

This trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects. The gimbals spring brackets with aesthetic and practical structure are suitable for variety of height, azimuth work and working environment. Flexible telescopic mechanical focusing mechanism makes the operation more convenient. The unique head rest frame helps the operator to exempt fatigue and improve work efficiency.Packed in a fitted Styrofoam box, and includes a dust cover.SpecificationsHead: Trinocular, 45° inclined, rotates 360°Eyepiece: 10x WF / 20mm high eye pointZoom Range: 0.7x—4.5x, 1:6.4 zoom ratioMagnification Range: 7x—45xWorking Distance: 100 mm standardFocusing: Heavy duty rack and pinion focusing arm with tension adjustmentStand: Micro-inserts Stand with Multi-Directional Spring BracketPacking ListTrinocular zoom stereo microscope headPair of 10x WF eyepiecesMicro-inserts stand with Multi-Directional Spring BracketPair of eye guardsOne dust coverShipping Information20” x 20” x 8”80 lbs

• 45° inclined trinocular head that rotates 360°. The trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) diopter adjustable, to compensate for eye-strength difference when needed
• 7x—45x standard magnification range, and also has a field of view of 2 ½” (65mm). The parfocaled optical design ensures that images remain sharp, crisp, and focused, throughout the entire magnification range

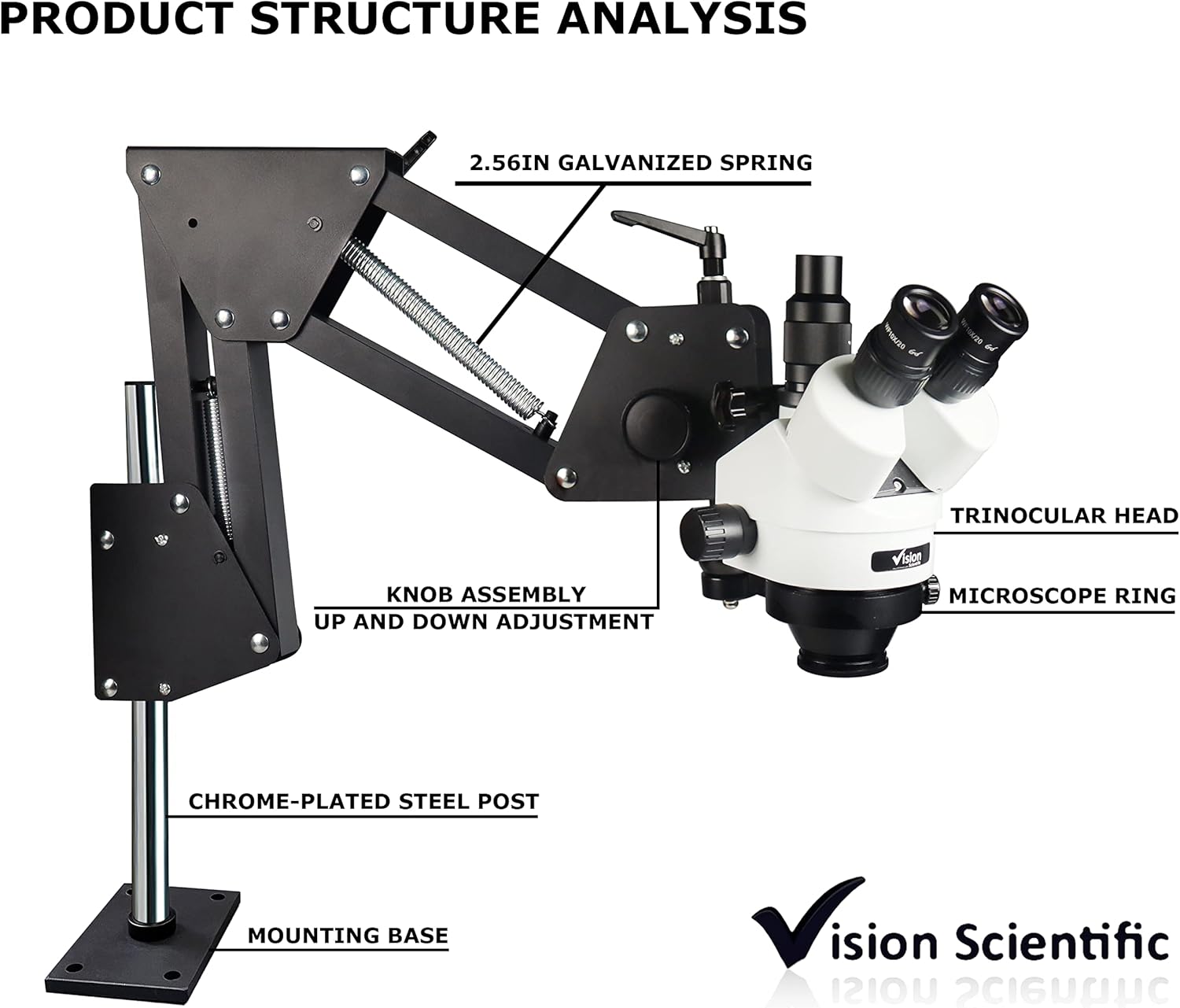

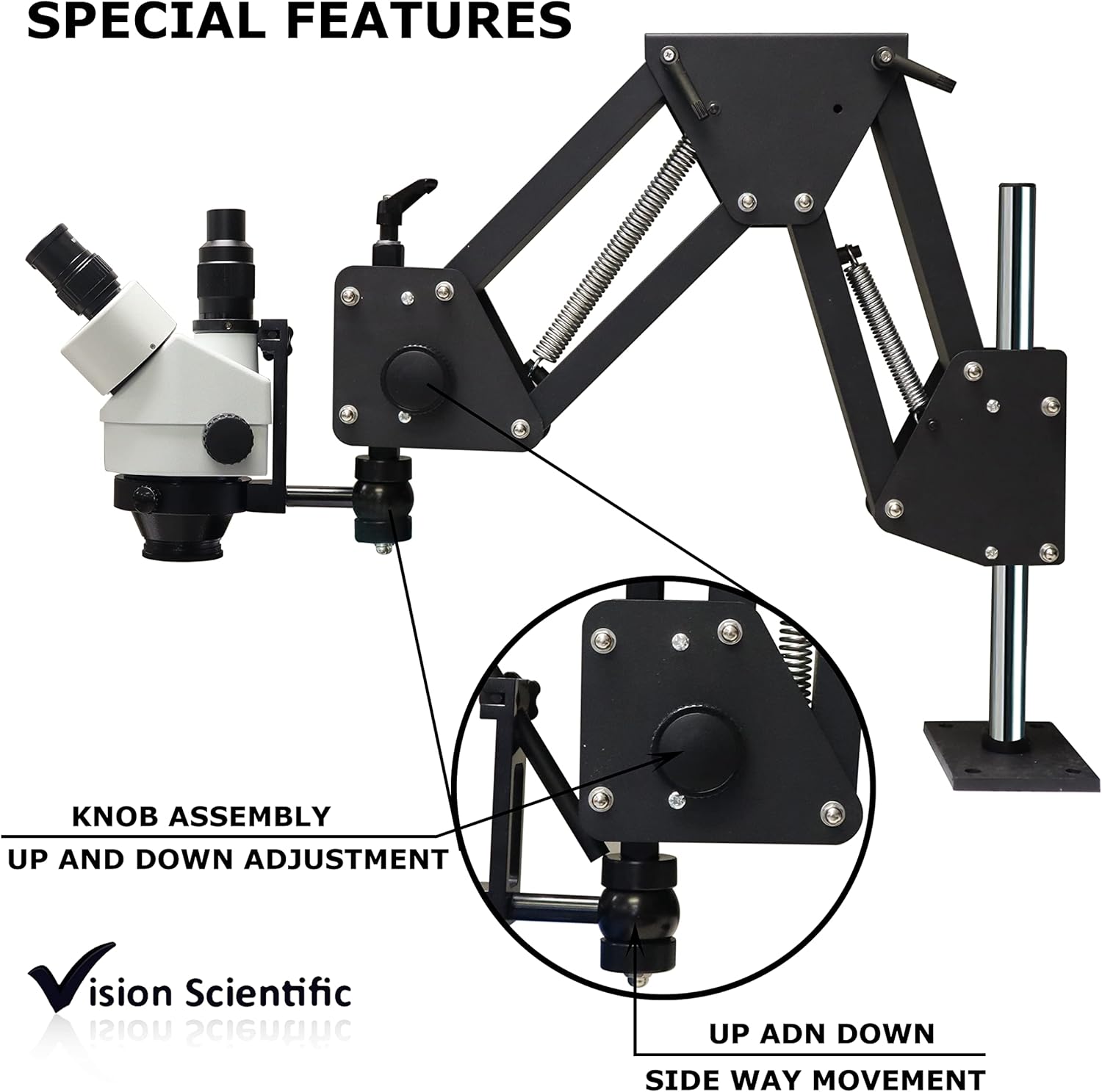

• Novel and unique spring bracket design , flexible telescopic mechanical focusing mechanism makes the operation more convenient and user-friendly by the unique head rest frame
• Micro-inserts stand is made of high rigidity, compact and stable chassis, its small footprint
• 100% open box policy backs up our warranty, by allowing our in-house technicians to check the smooth mechanical movement, optical alignment, and the electrical safety of every microscope that is shipped out to our customers
